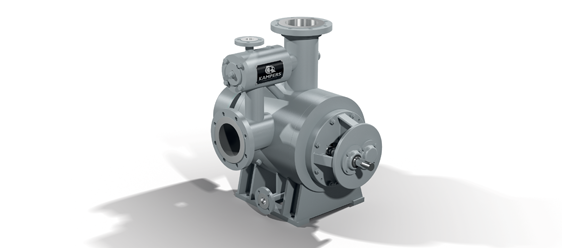

2M LHL.WS

KAMPERS 2M-series LHL.WS is a robust pump with a welded casing. It has an interchangeable liner allowing in-situ recondition and an even wider choice of materials than casted pumps. Welded casings also make supersizing of pumps possible extending the range to capacities of 2000 m3/h or even more in the future. It is designed for both corrosive and non-corrosive non-lubricating fluids. It has extra shaft length resulting in more extensive sealing arrangements, such as double (cartridge) seals and gland packing. It is constructed horizontally with flanges in L-style and discharge on top. It has an integrated pressure relief valve. A partly or fully heated casing and relief valve are optional, making it an appropriate pump for very hot fluids.



The LHL.WS is designed to operate in the most challenging environments, in applications where casted pumps meet their limits. It can for instance be used in shipping for bitumen discharge, for transfer of industrial liquid sulpur or for pumping crude oil in very large volumeson a tank storage site. The applications are nearly limitless.



Back to previous page

Specifications:

  • Long build
  • Horizontal
  • Diesel
  • Electric
  • Hydraulic
  • Ext. bearings
  • Flange arr. L





Downloads

Download Foto
