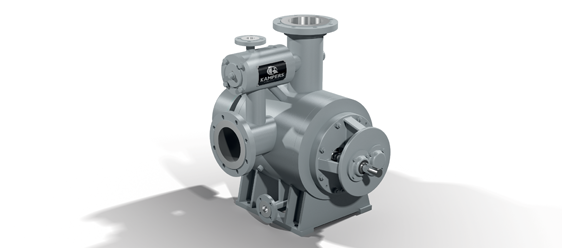

2M LHE.W(S)

KAMPERS 2M-series LHE.W(S) is a robust pump with a welded casing. It has an interchangeable liner allowing in-situ reconditioning and an even wider choice of materials than casted pumps. Welded casings also make supersizing of pumps
possible, extending the range to capacities of 2000 m3/h or even more in the future. It is designed for both corrosive (LHE. WS) and non-corrosive (LHE.W) non-lubricating fluids. It is suitable for applications that allow the use of single seals. It is constructed horizontally with flanges in L-style and discharge on top. It has an integrated pressure relief valve. A partly or fully heated casing and relief valve are optional, making it an appropriate pump for heated fluids. The LHE.W(S) is designed to operate in applications where casted pumps meet their limits. It is installed in both tank storage and many branches of industry, as well as shipping. It is self priming and can handle limited dry-running.



Back to previous page

Specifications:

  • Short build
  • Horizontal
  • Diesel
  • Electric
  • Hydraulic
  • Ext. bearings
  • Flange arr. L





Downloads

Download Leaflet
