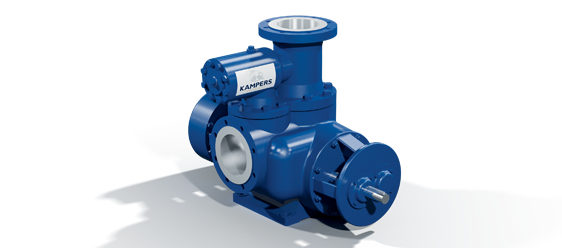

KAMPERS 2M-series LHL is a robust pump with extra shaft length resulting in more extensive sealing arrangements, such as double (cartridge) seals and gland packing. It is constructed horizontally with flanges in L-style and discharge on top. It has a built-on pressure relief valve. A foot heating system for steam, water or thermal oil is optional, as well as an electrical heating element. It is suitable for non-corrosive non-lubricating fluids.


Thanks to the wide range of sealing possibilities, the LHL is applied in tank storage, shipping and industry. The LHL offers the optimal solution should environmental requirements, safety regulations or fluid properties dictate double sealing arrangements. It is self priming and handle limited dry-running. The L-style flanges offer piping advantages in pump rooms or in other situations that require vertical piping.


Back to previous page


  • Long build
  • Horizontal
  • Diesel
  • Electric
  • Hydraulic
  • Ext. bearings
  • Flange arr. L




Download Leaflet
